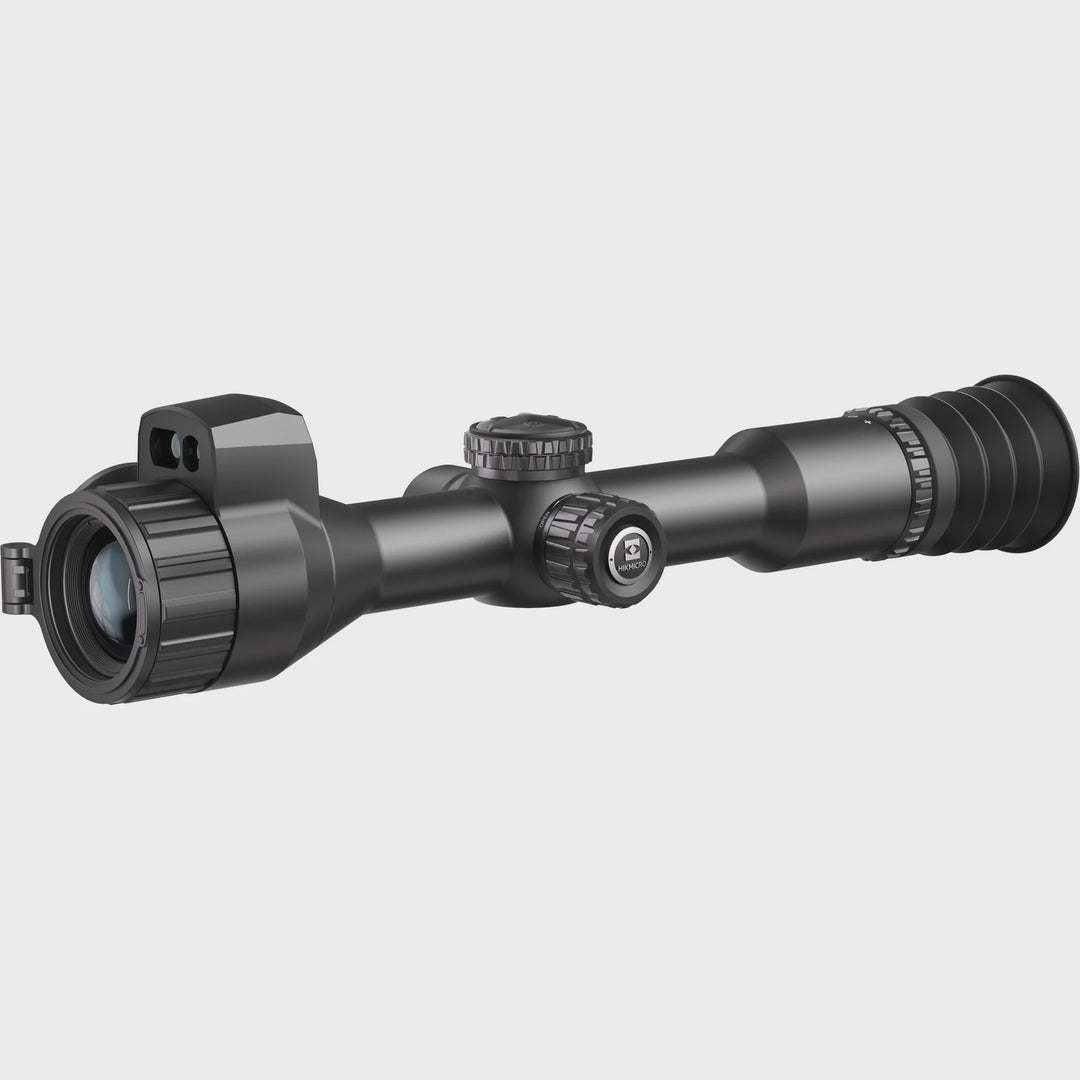

HIKMICRO NEOS NH35L 25mm 384x288 12mic <18mK Thermal Scope with LRF
The NEOS NH35L features a 384 × 288 thermal detector with an impressive sub-18mK NETD, delivering excellent heat sensitivity and clearer target detail in challenging conditions. Paired with a 35mm F1.0 lens, 3.2x base magnification, 7.6° field of view, and long 1800 m detection range.
The built-in 1000 m laser rangefinder, Image Pro 3.0, Zoom Pro, and HSIS shutterless imaging help maintain a smoother, sharper viewing experience. Compact, capable, and excellent value for the performance, the NH35L is ideal for hunters wanting a serious thermal scope with sharp imaging, practical range, ranging capability without stepping into the highest price tier.
Sub-18mK Thermal Platform for a Significant Step-Up in Heat Detail
The NEOS LRF NH35L, features a highly sensitive 12μm thermal detector with an impressive sub-18mK NETD. Allowing you to detect extremely small temperature differences for clearer thermal definition in real hunting conditions. Producing cleaner heat signatures, sharper animal outlines, and stronger separation between targets and the background.
HSIS shutterless imaging provides a smoother viewing experience with fewer interruptions, helping hunters stay focused during active observation. Built for field use, the NEOS LRF models also feature IP67-rated weather protection and 1000 g shock resistance, giving the scope the durability needed for rain, dust, rough handling, and repeated rifle recoil. The result is a compact, value-focused thermal.
Image Pro 3.0 & Zoom Pro: Enhanced Details at All Range
Identifying a target in the darkness can be quite challenging. Thanks to HIKMICRO's AI-powered Image Pro 3.0 and Zoom Pro algorithm, NEOS delivers clear and detailed images at all range. You can quickly lock on the target from the camouflage and zoom in to distinguish its features even it is hundreds meters away.
0.49'' AMOLED Large Display for Premium Visual Experience
The larger 0.49'' AMOLED display of HIKMICRO NEOS Thermal Scope opens up the scene wider before you, allowing a more immersive view and the confidence to make precise decisions. Moreover, the broader vision helps reduce eye strain during extended hunts, making every moment more comfortable for you.
Reliable Image Quality You can Trust
The NEOS NH35L is built to deliver dependable thermal clarity when observation distance matters. Its 384 × 288 12μm detector, sub-18mK NETD sensitivity, and 35mm F1.0 lens work together to reveal clearer heat detail, sharper target outlines, and stronger separation from the surrounding environment. Combined with Image Pro 3.0, Zoom Pro, and HSIS shutterless imaging, the NH35L provides a smoother, more consistent viewing experience, helping hunters observe with confidence across open fields, changing weather, and challenging low-visibility conditions.
Rangefinding and Ballistic Calculation Makes Hunting Accurate and Smart
Accurate data supports an accurate shot. HIKMICRO NEOS Thermal Scope is your strong support. Its 1000m laser rangefinder delivers the exact distance to your target, and with your ammunition data entered once, NEOS calculates the bullet drop and shows the exact point of impact. You stay focused on the shot, NEOS takes care of the math.
8-hour Operation Time Keeps You Going
Got all Night? Good. With impressive 8-hour battery life, the HIKMICRO NEOS Thermal Scope keeps you powered throughout your hunting trips, giving no more worries about the drained battery in the middle of the hunt.
Out in the field, your attention stays on the hunt, not on figuring out your gear. That’s why the HIKMICRO NEOS Thermal Scope is crafted with simple, intuitive controls and ergonomic button placement that feel natural from the moment you pick it up.
Built to endure up to 1000g/0.4ms recoil, the HIKMICRO NEOS Thermal Scope performs reliably even with larger calibers and in the harsh conditions, offering consistent precision and reliability no matter the challenge.
When stalking in darkness and silence, every step must be light and gentle. HIKMICRO NEOS Thermal Scope measures under 345 mm and weighs less than 570 g, adding no extra weight that impede your steps. Easy to carry and effortless to handle, the HIKMICRO NEOS moves with you, not against you.
With 2.4GHz/5GHz Wi-Fi module, the HIKMICRO NEOS Thermal Scope smoothly connects to the HIKMICRO Sight APP, and you can easily capture, review or share your hunting moments on the APP whether it is a moment for reflection or a proud shot.
NEOS: A Smart Choice | Outstanding
Powerful, lightweight technology that works with you. No Catch.
| HIKMICRO NEOS NH35L Specifications | |
|---|---|
| Product Overview | |
| Product Series | HIKMICRO NEOS |
| Model | NH35L |
| Product Type | Thermal rifle scope with laser rangefinder |
| Official Model Code | HM-TR33-35Y1G/W1L-NH35L |
| Quick Start-Up | 1-second quick start-up |
| Best Suited For | Longer-range thermal observation, hunting use, 30 mm tube mounting, laser ranging and ballistic calculation |
| Thermal Module | |
| Thermal Sensor Type | VOx uncooled focal plane arrays |
| Thermal Resolution | 384 × 288 px |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity / NETD | <18 mK @ 25°C, F# = 1.0 |
| Refresh Rate | 50 Hz |
| Response Waveband | 8 μm to 14 μm |
| Optics | |
| Objective Lens | 35 mm |
| Aperture | F1.0 |
| Focus Mode | Manual focus ring |
| Minimum Focusing Distance | 3 m |
| Base Magnification | 3.2× |
| Magnification Range | 3.2× to 25.6× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Field of View | 7.6° × 5.7° |
| Field of View at 100 m | 13.1 m × 10.0 m |
| Detection Range | Up to 1800 m |
| Image & Display | |
| Display Type | 0.49" AMOLED display |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Custom Enabled Palettes | Yes, palettes can be enabled or disabled in the menu |
| Brightness Adjustment | Yes |
| Contrast Adjustment | Yes |
| Tone Adjustment | Cold / Warm |
| Sharpness Adjustment | Yes |
| Scene Modes | Yes, selectable scene modes |
| Defective Pixel Correction | Yes |
| Exit Pupil | 8 mm |
| Eye Relief | 55 mm |
| Diopter Adjustment | -4D to +4D |
| Image Processing | |
| Image Processing | Image Pro 3.0 |
| Digital Zoom Enhancement | Zoom Pro |
| Shutterless Viewing | HSIS — HIKMICRO Shutterless Image System |
| Aiming Synchronisation | Sync Pro algorithm |
| FFC / Non-Uniformity Correction | Yes, hold Laser/FFC key to correct display non-uniformity |
| Picture-in-Picture | Yes |
| PIP Priority Order | Ballistic calculation recommended aiming point > reticle centre > laser rangefinding reticle > live view centre |
| PIP Zoom Behaviour | When PIP is enabled, only the PIP view zooms when adjusting digital zoom |
| PIP Zoom Display | Zoom ratio is temporarily displayed in the PIP view when adjusting digital zoom |
| Hot Tracking | Yes |
| Burning Prevention | Yes |
| Pitch Scale | Yes |
| Laser Rangefinder & Ballistics | |
| Laser Rangefinder | Yes, built-in LRF |
| Distance Measurement | Yes |
| Laser Safety Class | Class 1 |
| Laser Wavelength | 905 nm |
| Minimum Measuring Range | 10 m |
| Maximum Measuring Range | 1000 m |
| Measurement Accuracy | ±1 m |
| Laser Ranging Modes | Once / Continuous |
| Once Ranging Mode | Measures the distance once |
| Continuous Ranging Mode | Measures continuously; measurement duration is selectable |
| Continuous Ranging Refresh | Measurement result refreshes every second |
| THD Display | Yes, True Horizontal Distance can be enabled |
| Rangefinding Reticle Style | Selectable |
| Rangefinding Reticle Colour | Selectable |
| Failed Ranging Display | Displays “000” if laser ranging fails |
| Laser Key Press | Press to turn on laser ranging; press again to measure target distance |
| Laser Key Double Press | Double press to turn off laser ranging |
| Laser Key Hold | Hold to correct non-uniformity of display / FFC |
| Ballistic Calculation | Yes, ballistic calculation for hunting on LRF model |
| Ballistic Calculation Prerequisites | Reticle must be enabled and zeroing should be completed first |
| Ballistic Aim Point Style | Selectable |
| Ballistic Aim Point Colour | Selectable |
| Ballistic Drag Models | G1, G7 and GS |
| Ballistic Input Parameters | Initial velocity, altitude, temperature, ballistic coefficient, sight height, wind direction and wind speed |
| Ballistic On-Screen Outputs | Recommended aiming point, drop distance and wind drift |
| Ballistic App Setup | Can also be configured through HIKMICRO Sight app |
| Ballistic Ranging Limitation | Continuous laser ranging is not available when Ballistic Calculation is enabled |
| Zeroing & Reticle | |
| Zeroing | Yes |
| Freeze Zeroing | Yes |
| Click Value | 1 click = 1 cm @ 100 m |
| Zeroing Profiles | 5 profiles |
| Reticles per Profile | 5 reticles can be configured in each zeroing profile |
| Reticle Mode | Central Reticle / Fixed Reticle |
| Central Reticle Mode | Centres around the reticle when switching digital zoom; reticle and zoomed image move to the centre of the display |
| Fixed Reticle Mode | Centres around the reticle when switching digital zoom; reticle position remains unchanged |
| Reticle Off Option | Yes, OFF can be selected to turn the reticle off |
| Reticle Type Selection | 11 selectable reticle types |
| Bullet Name Setting | Yes, bullet name can be set for the reticle |
| Reticle Opacity | Adjustable; note that opacity cannot be set when reticle type 5 is selected |
| Reticle Colour Selection | Yes |
| Reticle Centre Colour Selection | Yes, reticle centre colour can be set separately |
| Reticle Information Display | Displayed at the top right of the image, e.g. A3-100m |
| PIP Reticle Note | Detail of reticle type 11 is not displayed in PIP view |
| Reticle Correction on Device | Yes |
| Reticle Correction via App | Yes, via HIKMICRO Sight Quick Zero |
| App Quick Zero | Select profile and reticle, input target distance, select digital zoom, enter point-of-impact deviation and apply to the device |
| Maximum Recoil Resistance | 1000 g / 0.4 ms |
| Recording, Storage & Media | |
| Snapshot Capture | Yes, press Capture key |
| Capture Confirmation | Image freezes for about one second and a prompt shows on the display after successful capture |
| Video Recording | Yes, hold Capture key to start/stop video recording |
| Recording Time Display | Recording time is displayed at the top of the screen while recording |
| Audio Recording | Yes, built-in microphone |
| Audio On / Off Setting | Yes, audio recording can be enabled or disabled |
| Recoil-Activated Recording | Yes |
| Prerecord Video | Yes |
| Prerecord Video Options | 5+5s, 10+10s, 15+15s, 15+25s, or OFF |
| Local Album | Yes |
| Album Naming | Albums are automatically named by year and month, e.g. 202605 |
| File Order | Files are arranged chronologically with the newest at the top |
| Internal Storage | Built-in 64 GB EMMC |
| Export Files via App | Yes, via HIKMICRO Sight to local phone albums |
| Export Files via PC | Yes, via USB-C cable and USB Flash Drive mode |
| PC Export Folder | DCIM folder, then the year-month folder such as DCIM > 202605 |
| PC Connection Limitation | Recording and capturing are disabled while connected to PC |
| App, Hotspot & Connectivity | |
| App Support | HIKMICRO Sight App |
| iOS App Support | Yes |
| Android App Support | Yes |
| Hotspot Connection | Yes |
| Hotspot Name Format | HIKMICRO_Serial No. |
| Hotspot Password | Displayed in the device hotspot menu |
| Remote Access | Yes, must be enabled for app connection |
| App Live View / Preview | Yes, device interface can be viewed on phone after connection |
| App Remote Control | Yes |
| Hotspot Auto-Off | Yes, hotspot turns off if there is no connection for over 10 minutes |
| Hotspot Password Change | Can be changed through HIKMICRO Sight app when connected |
| Hotspot Password After Reset | Password updates after device reset, so the phone must reconnect to the hotspot |
| Wi-Fi Regulatory Band / Power | 2.4 GHz Wi-Fi, 2.4 GHz to 2.4835 GHz, 20 dBm |
| Bluetooth | No listed Bluetooth function |
| USB-C, PC & Screen Casting | |
| USB Interface | USB Type-C |
| USB Charging | Yes, built-in battery only |
| USB Data Transfer | Yes |
| USB Flash Drive Mode | Yes, used for file export and PC firmware upgrade |
| PC Screen Casting | Yes, device screen can be cast to PC |
| PC Screen Casting Protocol | UVC protocol-based streaming media player |
| Screen Casting USB Mode | Digital mode via USB Type-C cable |
| First PC Connection | Drive program installs automatically when first connected to PC |
| Firmware Upgrade via App | Yes |
| Firmware Upgrade via PC | Yes, copy upgrade file to root directory in USB Flash Drive mode |
| Controls & Button Functions | |
| Wheel | Rotate to switch digital zoom in non-menu mode; rotate to move up/down in menu mode |
| Capture Key | Press for snapshot; hold to start/stop video recording |
| Menu Key | Press to switch palettes in non-menu mode; hold to enter menu |
| Menu Key in Menu Mode | Press to confirm/set parameters; hold to save and exit |
| Power Key | Press for standby/wake; hold for power on/off |
| Wheel Lock | Yes, hold Capture Key + Laser/FFC Key to lock/unlock the wheel |
| Charging Indicator | Flashing red/green = error, solid red = charging, solid green = fully charged |
| Power & Battery | |
| Battery System | One internal rechargeable lithium-ion battery and one replaceable rechargeable 18650 battery |
| External Battery Type | Rechargeable 18650 |
| External Battery Size | 19 mm × 70 mm |
| External Battery Voltage | 3.635 V |
| External Battery Capacity | 3300 mAh |
| Built-In Battery Size | 23 mm × 67 mm |
| Built-In Battery Voltage | 3.635 V |
| Built-In Battery Capacity | 3350 mAh |
| Battery Priority | External battery first, then built-in battery |
| Operating Time | 8 hours continuous running at 25°C with Zoom Pro on and LRF on |
| USB-C Power Supply | 5 V DC / 2 A, USB Type-C interface |
| Fast Charging Support | QC3.0 |
| First Charge Time | Charge for more than 4 hours before first use |
| USB-C Charging Note | Only the built-in battery charges via USB-C; external battery should be charged with the battery charger |
| External Battery Storage Note | Remove the external battery if the device will not be used for a long time |
| Long-Term Battery Care | For long-term storage, fully charge the battery every 3 months to maintain battery quality |
| Built-In Battery Charging Temperature | 0°C to 45°C |
| External Battery Charging Temperature | 0°C to 55°C |
| Power Saving & Screen Behaviour | |
| Standby Mode | Yes |
| Auto Power Off | Yes, selectable in menu |
| Auto Screen Off | Yes |
| Auto Screen Off Tilt Trigger | Tilt downwards more than 70° |
| Auto Screen Off Rotation Trigger | Rotate horizontally more than 45° |
| Auto Screen Off Stillness Trigger | Keep still for 5 minutes |
| Wake from Auto Screen Off | Tilt, rotate, or press Power key |
| Low Battery Auto Power-Off | Yes, cannot be cancelled |
| System Settings | |
| Date Setting | Yes, year / month / day can be adjusted |
| Time Synchronisation | Yes |
| Clock Format | 24-hour / 12-hour selectable |
| 12-Hour Clock | AM / PM selectable |
| Language Setting | Yes |
| Unit Setting | Yes, unit can be switched for distance measurement |
| OSD Setting | Yes |
| Screen Style | Round or square screen style |
| Brand Logo Display | Yes, can be set in menu |
| Screen Lock Passcode | Yes |
| Passcode Requirement | When enabled, passcode is required when the device is powered on or woken from standby |
| Forgotten Passcode | Reset from the lock screen requires a factory reset |
| View Device Information | Yes, shows version, serial number and available storage space |
| Restore Device | Restores basic settings such as brightness, contrast and PIP to defaults |
| Reset Device | Erases all content and settings, including basic settings, storage, passcode, hotspot password and zeroing |
| Build & Durability | |
| Main Tube Diameter | 30 mm |
| Mounting | 30 mm ring mounting; ring may vary by model and may be purchased separately |
| Protection Rating | IP67 |
| Centre Height | 32 mm |
| Dimensions | 345.6 mm × 86.1 mm × 75.8 mm |
| Weight | 570 g |
| Working Temperature | -30°C to 55°C (-22°F to 131°F) |
| Included Accessories | |
| Included in the Box | HIKMICRO NEOS NH35L Thermal Rifle Scope, battery, battery charger, Type-C cable, lint-free cloth and quick start guide |
| Scope Ring Included | May vary by package; manual notes that the ring may need to be purchased separately |
| Warranty | |
| Unit Warranty | 3 years |
| Battery Warranty | 1 year |
| Common Questions | |
| Does the NH35L have a laser rangefinder? | Yes, built-in Class 1 905 nm laser rangefinder from 10 m to 1000 m with ±1 m accuracy |
| What is the laser wavelength? | 905 nm |
| What is the minimum laser measuring range? | 10 m |
| Does it have ballistic calculation? | Yes, with selectable aim point style/colour, G1/G7/GS drag models and inputs for velocity, altitude, temperature, ballistic coefficient, sight height and wind |
| Does it record video? | Yes |
| Does it record audio? | Yes |
| Does it take snapshots? | Yes |
| Does it connect to a phone? | Yes, through the HIKMICRO Sight App via hotspot |
| Can the phone show live view? | Yes, the device interface can be viewed on the phone once connected |
| Can it export files to a PC? | Yes, using USB-C and USB Flash Drive mode |
| Can it cast the device screen to a PC? | Yes, using UVC protocol-based screen casting over USB-C |
| Does it use a 30 mm tube? | Yes |
| Is it waterproof? | Yes, IP67 rated |
| Does it have shutterless viewing? | Yes, HSIS shutterless image system |
At Hamills, we want to keep it as easy as possible for you, so we offer:
- Free shipping on orders over $199.99 to New Zealand non-rural addresses. A $5 rural surcharge will apply to rural addresses for orders over $199.99.
- For all orders under $199.99 for NZ deliveries, we charge the following flat rates:
- North Island - a flat rate of $8.50 to non-rural addresses and $13.50 to rural addresses (some heavy items may incur additional charges. We will advise before shipping).
- South Island - a flat rate of $9.99 to non-rural addresses and $14.99 to rural addresses (some heavy items may incur additional charges. We will advise before shipping).
Please note there are a handful of oversized/heavy items that may incur additional shipping costs. If this is the case with your item, we will advise you of the cost before dispatching.
INTERNATIONAL ORDERS
We ship internationally. All our international delivery costs are determined by destination, and the size of your parcel.
Displayed pricing applies to New Zealand resident customers (NZD) only. International orders will be processed in the New Zealand dollar.
International shipping rates will be displayed upon checkout. Any applicable customs charges or local taxes are the responsibility of the customer and is not covered in your purchase price by Hamills Taupo.
We offer two shipping options: non-tracked or tracked. By selecting the non-tracked option, you agree to carry the risk associated with the parcel’s travel.
We also offer a tracked DHL Express option. Pricing will be available at checkout.
When an order is shipped outside of New Zealand you may be charged duties or taxes by your local government before the items will be released to you, as these are beyond our control please check with your local customs department prior to ordering should you have any concerns. These charges are not the responsibility of Hamills Taupo.
Please Note: If your order contains any clearance items this may delay the dispatch of your order.
Orders will be processed Monday – Friday.
ESTIMATED DELIVERY TIMES (NEW ZEALAND)
We know you’re going to be super keen to get your new purchase so that’s why we process and dispatch orders as soon as we can. Actual delivery time will depend on your location.
Once your order has been processed and dispatched, indicative delivery times are as follows:
- North Island orders: 1-3 working days from dispatch.
- South Island orders: 2-5 working days from dispatch.
Orders will be processed Monday – Friday.
Unfortunately, overnight or Saturday deliveries cannot be guaranteed.
We are unable to post to PO Box addresses.
ESTIMATED DELIVERY TIMES (AUSTRALIA)
We know you’re going to be super keen to get your new purchase so that’s why we will dispatch orders usually within 24 hours of being received. Actual delivery time will depend on your location (see below).
Once your order has been processed, indicative delivery times are as follows:
- 7 - 14 working days.
- Rural delivery or remote locations can take just a little longer so please allow an additional 2 working days.
- Please Note: If your order contains any clearance items this may delay the dispatch of your order. Covid has created increasing delays to some areas. Please be patient.
FIREARMS, AIR RIFLES AND AMMUNITION
There are some products that we are unable to sell online but we are still able to ship nationwide. We can accept payment by credit card over the phone or via bank transfer.
As these items may be age or license restricted, you will be required to complete a Firearms Mail Order Form before we can release the goods. Please contact us in the shop 07 378 7779 or flick us an email shop@hamillstaupo.co.nz and we would be happy to talk you through the process.
We can only deliver firearms and ammunition to the following addresses:
- The licence holders address (this must match your firearms license and you must be home to receive the delivery)
- Your local firearms dealer (please ensure you have their permission for us to deliver your item to them. They may charge a collection fee to you direct on pick up).
For online sales of firearms and ammunition, we are required by law to have a police officer check in person that your firearms license is valid.
